Technical Parameter of Glazed Tile Roll Forming Machine

1. Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
2. Material width: depend on customer’s requirement
3. Decoiler Type: manual or automatical type ( depend on customer’s requirement )
4. Weight Capacity Of Decoiler: 5 Ton
5. Main Motor Power: 5.5 Kw
6. Hydraulic Motor Power: 7.5 Kw
7. Forming Station: 13-18 ( depend on profile drawing )
8. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
9. Main Axis Material: High grade 45#, quenched and heat treatment.
10. Axis Diameter: ¢ 75mm
11. Working Speed: 0-15 m/min
12. Transporting Type: Chain Transmission
13. Heat Treatment of Cutting Blade: HRC 50-60
14. Type of Cutting: Hydraulic cutting
15. Material Of Cutting Blade: C r 12
16. Heat Treatment of Cutting Blade: HRC 50-60
17. Machine Frame stand: Welded structural steel
18. Thickmess of Fame Steel: 18mm
19. Electrical Control: PLC Frequency Control System with touch screen
20. PLC: PANASONIC Brand
21. Encoder: OMRON Brand
22. Transducer: PANASONIC Brand
23. Machine Weight: about 8.5 Ton

Main Components

1. Decoiler ------------------------------------------------------------------------------------ 1 Unit
2. Film covering device -------------------------------------------------------------------- 1 Unit
3. Feeding guide ----------------------------------------------------------------------------- 1 Unit
4. Main roll forming machine -------------------------------------------------------------- 1 Unit
5. Hydraulic pressing device -------------------------------------------------------------- 1 Unit
6. Hydraulic cutting device ----------------------------------------------------------------- 1 Unit
7. Hydraulic Station -------------------------------------------------------------------------- 1 Unit
8. PLC computer control -------------------------------------------------------------------- 1 Unit
9. Output table --------------------------------------------------------------------------------- 1 Unit

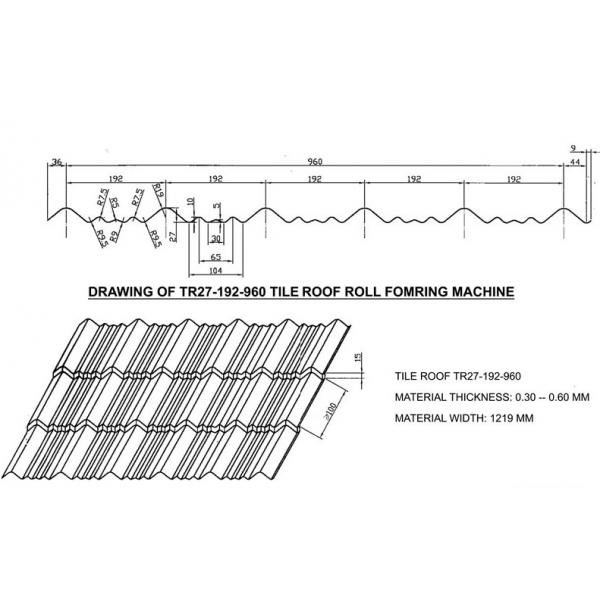

Tile Profile

Working Flow

Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
